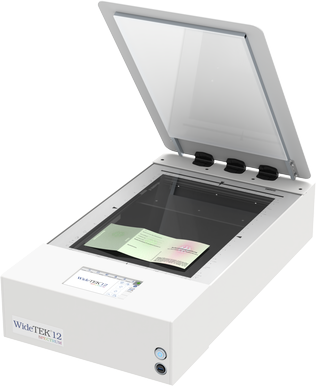

WideTEK 12 Spectrum
Fastest UV, VIS, IR, 3D and Backlight Flatbed Scanner in A3+ Format
The WideTEK® 12 SPECTRUM outperforms high-end lab instruments, capturing ultra-precise images under ultraviolet (365nm), visible light, and infrared (850nm) for formats up to 12″ x 18″.
🔬 Multi-Spectral Mastery: Simultaneous UV/VIS/IR/3D/Backlight scanning in a single device
Technical Specifications
| Scanning Technology | UV (365nm), VIS, IR (850nm), 3D, Backlight |
|---|---|
| Max Scan Area | 313 x 470 mm (12.3 x 18.5″) | 18% > DIN A3 |
| Optical Resolution | 1200 x 1200 dpi |
| Scan Speeds | VIS & IR: • 300dpi: <3s | • 600dpi: <6s | • 1200dpi: <12s UV: 300dpi: 12s |
| Processing System | Intel® Core™ i3-8th Gen | 8GB RAM | 240GB SSD | 64-bit Linux |
| Supported Formats | DIN A5 to A3 | 20+ file formats including PDF/A, DICOM, DWF |
| Interface | 7″ WXGA Touchscreen (1280×800) | USB 3.0 |
| Dimensions | 255 × 440 × 795 mm (10 × 17.4 × 31.3″) |
