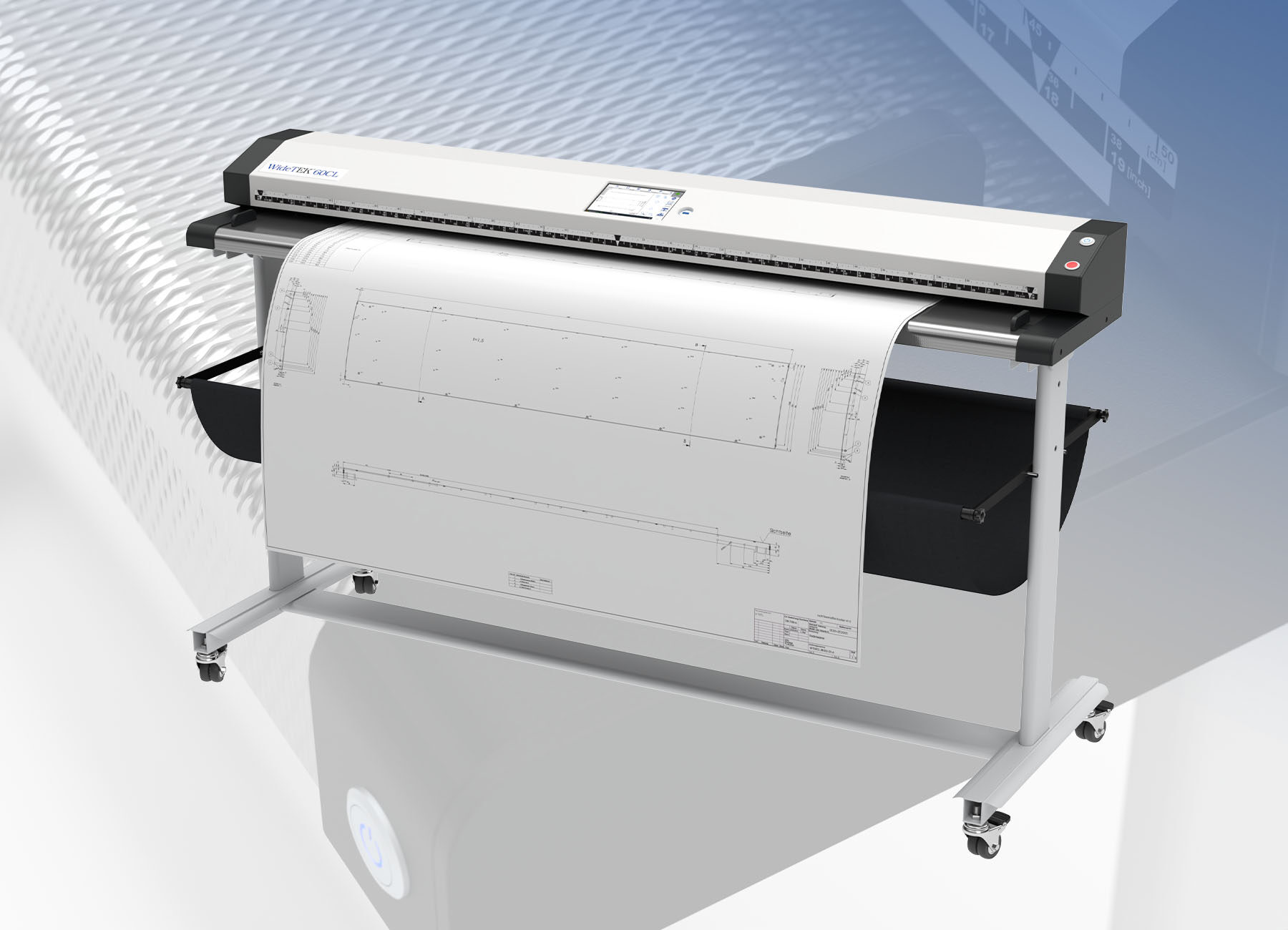

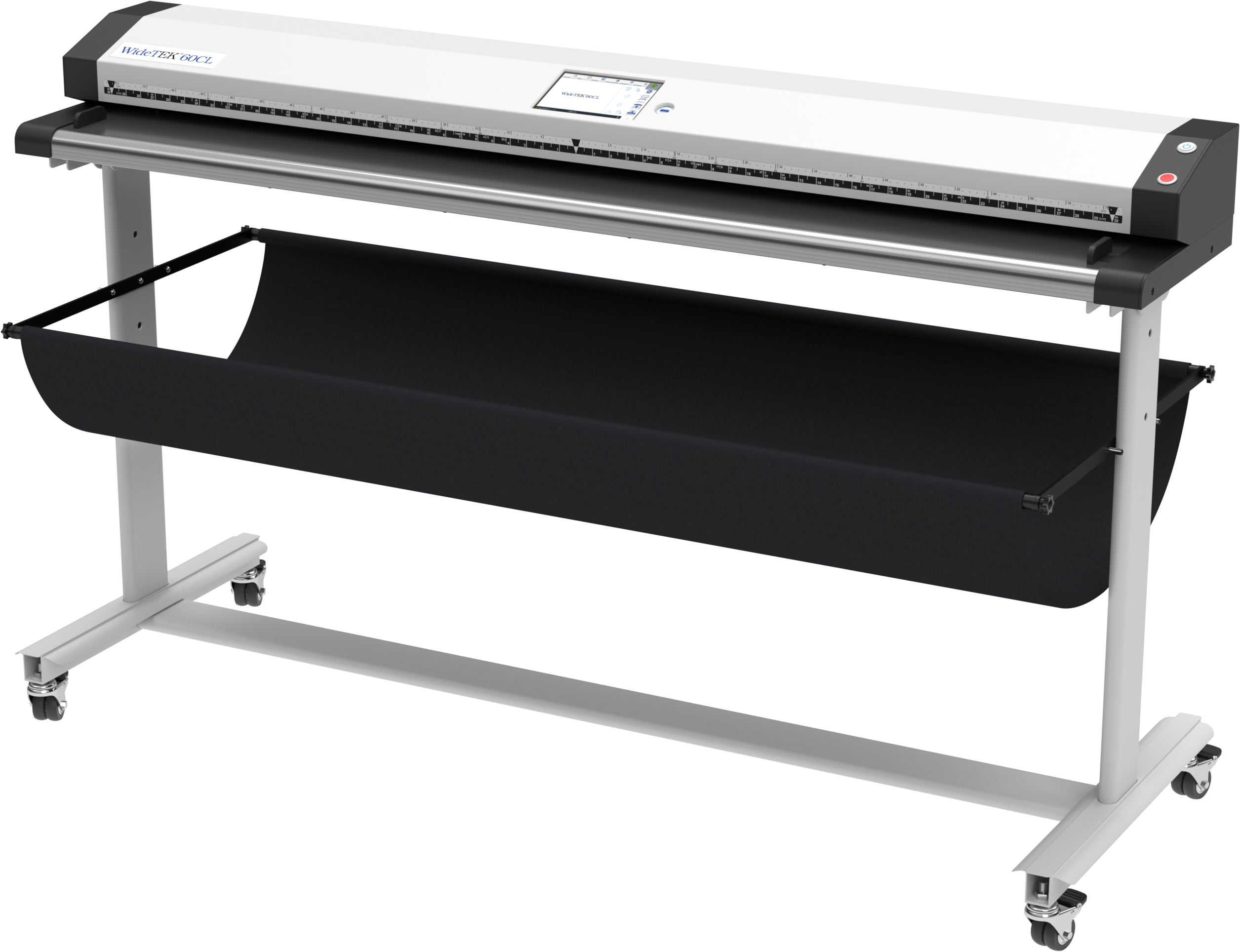

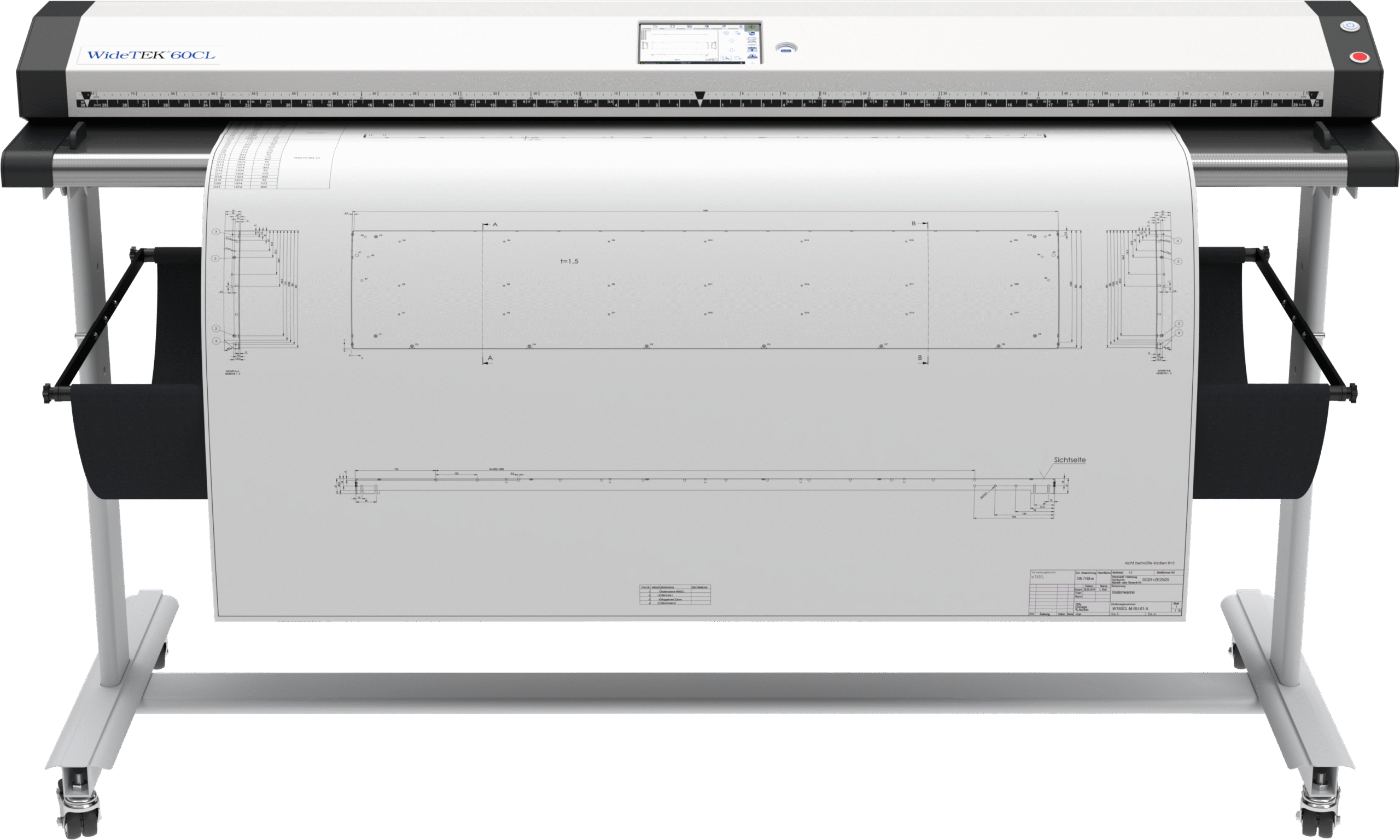

WideTEK 60CL
Industrial-Grade Wide Format Scanning
The WideTEK® 60CL delivers professional 60-inch scanning with exceptional accuracy (±0.08%) and five dual-light CIS modules for flawless image capture. With 16GB built-in memory, it handles documents up to 20m long at 300dpi.
Precision Engineering: Maintains ±0.08% dimensional accuracy across full 60″ scan width
Key Specifications
| Max Scan Width | 1570 mm (61.85″) – Industry’s widest CIS format |
|---|---|
| Resolution | 1200 x 1200 dpi (9600 x 9600 dpi interpolated) |
| Scan Speeds | Color @ 300dpi: 10″/s Grayscale @ 600dpi: 4.5″/s (3× faster than color) |
| Sensor Technology | Five dual-light CIS modules | 48-bit color depth |
| Memory Capacity | 16GB RAM | Scans up to 20m (803″) at 300dpi |
| File Formats | PDF/A, TIFF, DWF, DICOM + 15+ professional formats |
| Power Efficiency | 46% below ENERGY STAR requirements |
| Dimensions | 170 × 1697 × 358 mm (7 × 67 × 14″) | 35kg |
